Here is a compilation of a few of the most common problems faced by users of the lyric Honeywell home pro series thermostat when dealing with their hvac system, furnace, air handler, and temperature settings. This guide will provide detailed troubleshooting steps for each issue.
So here are Honeywell Pro Series Thermostat Troubleshooting
Honeywell Thermostat Troubleshooting No Display
If you are experiencing no display issues on your Honeywell thermostat, there are a few troubleshooting steps you can try to fix the problem.
Check the power source: Make sure your thermostat is receiving power. Check the circuit breaker or fuse box to ensure that power is reaching the thermostat. If the power is off, turn it back on and see if the display comes back
Replace the batteries: If your thermostat is battery-powered, check the batteries and replace them if necessary. Sometimes, a low battery can cause the display to go blank.
Reset the thermostat: Try resetting your thermostat to its default settings. This can be done by removing the thermostat from its wall mount and disconnecting it from any power source for a few minutes. Then, reconnect the thermostat and see if the display returns.
Check the wiring: Inspect the wiring connections between your thermostat and the HVAC system. Make sure all wires are securely connected and not damaged. If there are any loose or damaged wires, they may need to be repaired or replaced.
Contact customer support: If none of the above steps resolve the issue, it may be necessary to contact Honeywell customer support for further assistance. They can provide specific troubleshooting steps or arrange for a technician to inspect and repair your thermostat if needed.
By following these steps, you should be able to fix the no display issue on your Honeywell thermostat and regain control over your HVAC system.
How to Installed Batteries?
- Batteries are optional (to provide backup power) if your thermostat was wired to run on AC power when installed. If your thermostat Honeywell was not wired to run on AC power, then batteries are required.
- Install fresh batteries immediately when the low battery icon appears. The icon appears about two months before the batteries are depleted.
- Even if the low battery icon does not appear, you should replace batteries once a year, or before leaving home for more than a month.
- If batteries are inserted within two minutes, the time and day will not have to be reset. All other settings are permanently stored in memory and do not require battery power.
- NOTE: When replacing batteries, alkaline batteries are recommended.
- Learn More about each series with model Honeywell battery replacement:
Heating or cooling system does not respond
- Press Mode button to set system Heat (see below)
Make sure the desired temperatures for your programmable thermostat are set higher than the inside temperatures to ensure efficient operation of your furnace and air conditioner.
- Press Mode button to set system Cool (see below)
Make sure the desired cooling temperature is set lower than the inside temperature of the air conditioner.
- Check the circuit breaker and reset if necessary.
- Make sure the power switch for the heating & cooling system is on.
- Make sure the furnace door is closed securely.
- Wait 5 minutes for the system to respond.
How to Press the Mode button To set the System’s temperature settings, reset, and power?
- Press the Mode button on a programmable touchscreen to cycle to the next available System mode.
- Cycle through the modes until the required System mode is displayed and leave it to activate.
NOTE: Available System modes, including technician mode, vary by model and system settings.
System modes: ‒ Auto‒ Heat‒ Cool‒ Off‒ Em. Heat
Honeywell T4, T6 Pro no programmable touchscreen option
Lack of Touchscreen Option
The T4 and T6 Pro models have gained popularity for their advanced features and impressive performance. However, one aspect that has left some users disappointed is the lack of a touchscreen option. Unlike other models in the same series, the T4 and T6 Pro do not offer a touchscreen interface, which can be a drawback for those who prefer a more interactive and intuitive user experience.
To better understand the implications of this limitation, let’s compare the features, pros, and cons of the T4 and T6 Pro models with and without a touchscreen option:
T4 and T6 Pro with Touchscreen
T4 and T6 Pro without Touchscreen
Interactive and intuitive touchscreen
Traditional button interface
Easy navigation through touch gestures
Navigation through buttons and menus
Enhanced user experience with direct interaction
User experience relies on button presses
Personalize settings with ease on the touchscreen
Limited customization options through buttons
Quick access to features with a tap or swipe
Features accessed through menu navigation
Honeywell T4, T6 Pro programmable touchscreen option
- From the home screen, press the MENU button.
- Then press “+” until “prog” is displayed on the screen.
- Then press SELECT to edit the program.
If you don’t see the program option when following these steps, the thermostat technician may have configured the cooling operation as non-programmable by the installer due to a refrigerant problem.
Then Check ISU Settings
- Press and hold the CENTER and + buttons for approximately 3 seconds to enter the advanced menu.
- Press Select to enter ISU.
- Press Select to cycle through menu setup options.
- Press + or – to change values or select from available options.
- Press Select and confirm your settings or press Back to ignore changes and return to the ISU menu screen to continue editing another setup option.
- To finish the setup process and save your setting, press Home and return to Home screen.
Temperature settings do not change
- If the display says “unlock“.
- Press the Mode button to cycle to the next available System mode.
- Cycle through the modes until the required System mode is displayed and leave it to activate.
- If not, verify you are in the correct mode (heat, cool, em heat, or auto); (see up of how to Press the mode button to set the system)
- If the temperature sensor is in the correct mode, but you cannot set the heat from 40 °F to 90 °F (4.5 °C to 32 °C), or set the cool from50 °F to 99 °F (10 °C to 37 °C), you may have range-stops restricting your setting.

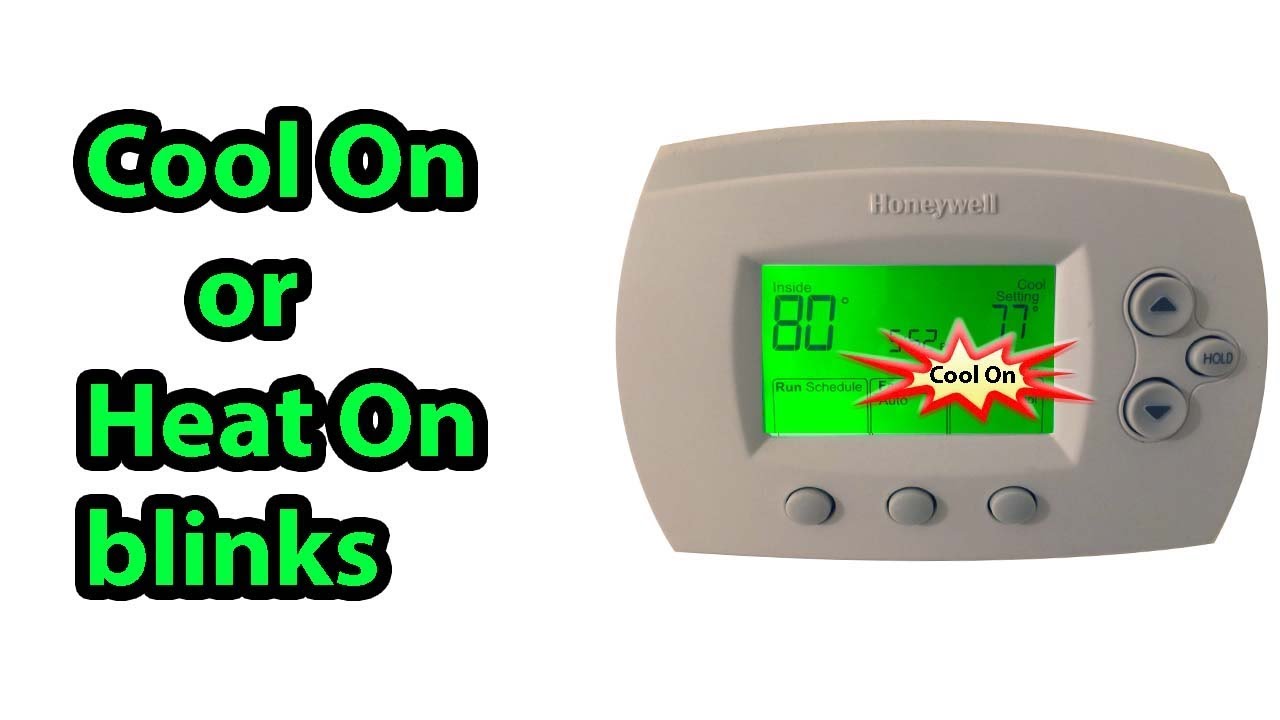

“Cool On” or “Heat On” is flashing
The compressor protection feature is engaged. Wait 5 minutes for the cooling system to reset and the air conditioner to restart safely, without damage to the compressor or coil.
Honeywell Pro series Thermostat Reset
- Press and hold the menu button until the advanced menu opens.
- Go to “Advanced Reset” using left and right arrows.
- Press on “Factory”
- Press on the tick icon to confirm the rest.
2nd Method of Honeywell Pro series Thermostat Reset (T4, T6)
- Press the Menu and + button simultaneously.
- Hold for 3 to 5 Seconds.
3. Until you see ISU pop-up display.
4. Next press the Select and then Home button.
In case you have other Honeywell pro series thermostat to reset then then there is a sub topic where you can find all series thermostat reset guide.
How to unlock/lock Honeywell Pro thermostat
The thermostat Honeywell has 3 settings for the screen lock: Unlocked, Partial Lock, and Full Lock
-Unlocked: All settings are adjustable
-Partial: Setpoint changes are allowed. All other settings are locked
-Full: No changes are allowed
When the air conditioning system is active, a cooling coil problem may arise. In this case, a “lock” icon will be displayed on the thermostat screen.
- Press Menu on the thermostat.
- Press + or – to go to LOCK. Press Select.
- Press + or – to go to OFF, PART, or ON, and then press Select.
- To unlock the keypad, press the CENTER button and then enter the password “1234”. To enter the password, press + or – to change the first digit of the number. Then press Select. Repeat this process to enter the second through fourth digits of the number. Once all four numbers have been entered, press Select again.
- This will unlock the keypad.
- If the code is incorrect, the screen will flash the lines “”–“”.
- Press Back to go back a step to enter the correct number and press Select.
If these above steps failed to resolve your problem with air cooling, then follow this guideline. Click here
Note: In addition to troubleshooting thermostat errors, a complete list of the best Honeywell pro series with features and which one you should buy.
Before getting help with a cooling problem from an air conditioning manual or professional, take a quick overview of what you should do to fix the issue by following these steps.
For Programmable Honeywell Thermostat Troubleshooting
In case the display is blank:
- Replace batteries
- Check circuit breaker
- Ensure all panel doors of the indoor unit are closed
- Verify power connection to furnace or AC unit by checking switch near indoor unit
If the display is on but heating/cooling isn’t working:
- Verify date/time settings and temperature programming
- Check wires and jumper settings after removing cover (e.g., “HE” for electric furnace, “HG” for gas furnace)
- Test analog thermostat by adjusting temperature and waiting
- If above steps don’t work, contact HVAC repair company.
For Smart Thermostat Troubleshooting
Smart thermostats have a significant advantage in providing error codes for cooling issues.
The following error codes require service:
- 164: Heat pump requires servicing
- 168: Wi-Fi radio error
- 170: Internal memory error
- 173: Error with thermostat temperature sensor
- 177: Error with indoor temperature sensor
- 178: Error with outdoor temperature sensor
Error codes that can be resolved by the user include cooling.
- 171: Set date and time to schedule the thermostat
- 181/182: Replace air filter
- 183: Clean the humidifier tank and replace the filter
- 185: Replace the dehumidifier filter
- 388: Register online for remote access and exterior temperature
- 399: No internet connection
- 400: Weak Wi-Fi signal
- 508: Wi-Fi not connected
Decoding other Honeywell Thermostat Error Codes
Honeywell thermostats are reliable and efficient at controlling temperature. But sometimes they can have errors. Knowing the error codes can help you fix any problems.
Here are some common Honeywell thermostat error codes and their meanings:
“E1” or “E2” – These error codes typically indicate a problem with the thermostat’s temperature sensor. It could be due to a faulty sensor or a wiring issue. Try resetting the thermostat by turning off the power and then turning it back on. If the error persists, you may need to replace the temperature sensor.
“E3” – This error code usually indicates a problem with the thermostat’s internal memory or programming. Try resetting the thermostat to its factory defaults by pressing the reset button or following the manufacturer’s instructions. If the error persists, you may need to contact Honeywell customer support for further assistance.
“E4” – This error code indicates a communication problem between the thermostat and the HVAC system. Check the wiring connections between the thermostat and the HVAC unit to ensure they are secure and properly connected. If the wiring is fine, you may need to consult a professional technician to diagnose and repair the communication issue.
“E5” – This error code typically indicates a problem with the thermostat’s power supply. Check if the thermostat is receiving power by ensuring that it is properly connected to a functioning power source. If the power supply is not the issue, there may be a problem with the thermostat’s internal components that require professional repair or replacement.
“E6” – This error code indicates a problem with the outdoor temperature sensor. Check if the sensor is properly installed and connected. If it is, you may need to replace the outdoor temperature sensor.
It’s important to note that these error codes may vary depending on the specific model of your Honey
Troubleshooting Honeywell Thermostat Errors
When troubleshooting Honeywell thermostat errors, there are several common issues that you may encounter. Here are some steps you can take to troubleshoot and resolve these errors:
Check the power supply: Ensure that the thermostat is receiving power. Check the circuit breaker and make sure it hasn’t tripped. If the thermostat is battery-powered, replace the batteries.
Verify the thermostat settings: Double-check the thermostat settings to ensure they are correct. Make sure the temperature is set to your desired level and that the thermostat is in the appropriate mode (heat, cool, or auto).
Clean the thermostat: Dust and debris can interfere with the thermostat’s operation. Use a soft cloth to gently clean the thermostat, removing any dirt or grime that may be affecting its performance.
Calibrate the thermostat: If you notice that the temperature readings on your thermostat are inaccurate, you may need to calibrate it. Consult the user manual for instructions on how to calibrate your specific Honeywell thermostat model.
Reset the thermostat: Sometimes, resetting the thermostat can resolve minor issues. To reset your Honeywell thermostat, locate the reset button (usually located on the side or back of the device) and press it using a paperclip or a small tool. Follow any additional instructions provided in the user manual.
Check the wiring: Inspect the thermostat’s wiring to ensure that it is properly connected. If you notice any loose or damaged wires, you may need to repair or replace them.
Update the firmware: If your Honeywell thermostat is connected to Wi-Fi and supports firmware updates, check for any available updates. Updating the firmware can often resolve compatibility issues and improve overall performance.
If you have followed these troubleshooting steps and are still experiencing issues with your Honeywell thermostat, it may be necessary to contact Honeywell customer support or consult a professional HVAC technician for further assistance.
Honeywell Thermostat Heat Not Working On Auto
The auto settings on your thermostat might not work if there are problems with the wiring. Fix bugs and glitches in the software to change auto settings. On the other hand, your thermostat’s battery could be dying, the sensor might not be working, or the feature might not be on. it is not possible to explain in detail here, therefore a complete researched topic on this particular issue for the user to benefit from it.
Honeywell Pro Series Thermostat Manual
- T4 Pro
- T6 Pro
- RTH5160 Non-Programmable Thermostat
- WiFi Touchscreen Thermostat Installation Manual
- WiFi Color Touchscreen Thermostat
- VisionPRO WiFi Thermostat
- How to Program Honeywell T4 and T6
Honeywell Thermostat Helpline for the United States
|Thermostats, Furnace Filters, and Whole House Humidifiers
|Wi-Fi Digital Thermostats
Honeywell Thermostat Helpline for International Customers:
International: 001 (480) 353-3020
Hours: 4:00 a.m. Monday through 11 a.m. Saturday (GMT)
If you need Honeywell thermostat help from their Support… Then Click Here or get help from outside service experts.
Frequently Asked Questions:
Is There A Reset Button On A Honeywell Thermostat?
The location and design of the reset button on a Honeywell thermostat can vary depending on the model you have. Some Honeywell thermostats have a small reset button located on the thermostat itself, often behind the thermostat’s cover. This button is usually labeled “Reset” or “System Reset.”
What Happens If I Push The Reset Button On My Thermostat?
Pushing the reset button on a thermostat will clear any current settings or programming and return the thermostat to its factory defaults. This may include thermostat temperature settings, schedule programming, and other preferences. It is typically used as a troubleshooting step when the thermostat is not working correctly or as a way to clear settings before reprogramming the thermostat.
What does a failed thermostat look like?
A failed thermostat can display several signs, including:
- Inaccurate temperature readings: The thermostat may display a temperature that is different from the actual room temperature.
- Inconsistent performance: The thermostat may turn on and off unexpectedly, or fail to turn on at all.
- No display: The thermostat may have no display or the display may be blank.
- Dead batteries: A battery-operated thermostat may display a low battery warning or not turn on at all if the batteries are dead.
- Thermostat Errors messages: Some thermostats may display error messages or flashing lights indicating a problem.
- Physical damage: In some cases, a thermostat can have physical damage such as broken wires or loose connections.
- Inability to change settings: Some thermostats may not allow you to change the temperature or settings, indicating a failure in the control system.
Why is my Honeywell Pro Series not Working?
